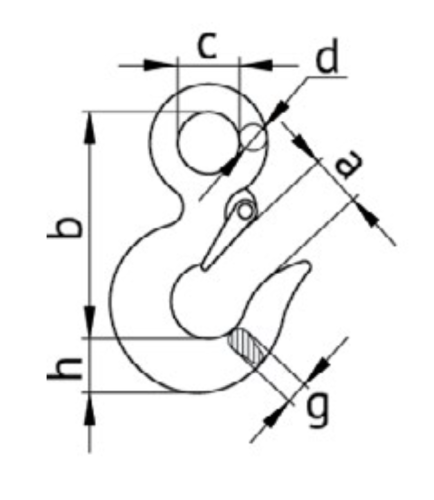

г/п, т |
a, мм |
b, мм |
c, мм |
d, мм |
g, мм |
h, мм |
Масса, кг |
|
0,75 |
19,1 |
70,7 |
16,7 |
8,0 |
19,2 |
18,5 |
0,15 |
|
1,0 |
21,8 |
82,2 |
19,0 |
9,0 |
20,8 |
20,0 |
0,25 |
|
1,6 |
23,1 |
93,7 |
22,5 |
11,0 |
24,0 |
21,6 |
0,34 |
|
2,0 |
24,6 |
112,7 |
27,0 |
12,5 |
28,9 |
26,8 |
0,57 |
|
3,0 |
26,5 |
117,9 |
31,0 |
15,4 |
33,0 |
32,8 |
0,77 |
|
4,5 |
32,4 |
147,0 |
38,6 |
18,0 |
42,2 |
37,1 |
1,63 |
|
7,0 |
37,7 |
187,0 |
51,7 |
22,6 |
52,6 |
47,1 |
3,2 |
|
11,0 |
47,5 |
230,0 |
61,6 |
29,0 |
66,0 |
60,5 |
5,9 |
|
15,0 |
56,0 |
260,0 |
72,0 |
33,0 |
78,0 |
72,0 |
9,8 |
|
22,0 |
77,0 |
315,0 |
87,0 |
39,0 |
90,0 |
84,0 |
15,6 |
|
30,0 |
85,0 |
355,0 |
90,0 |
45,0 |
115,0 |
105,0 |
19,0 |
